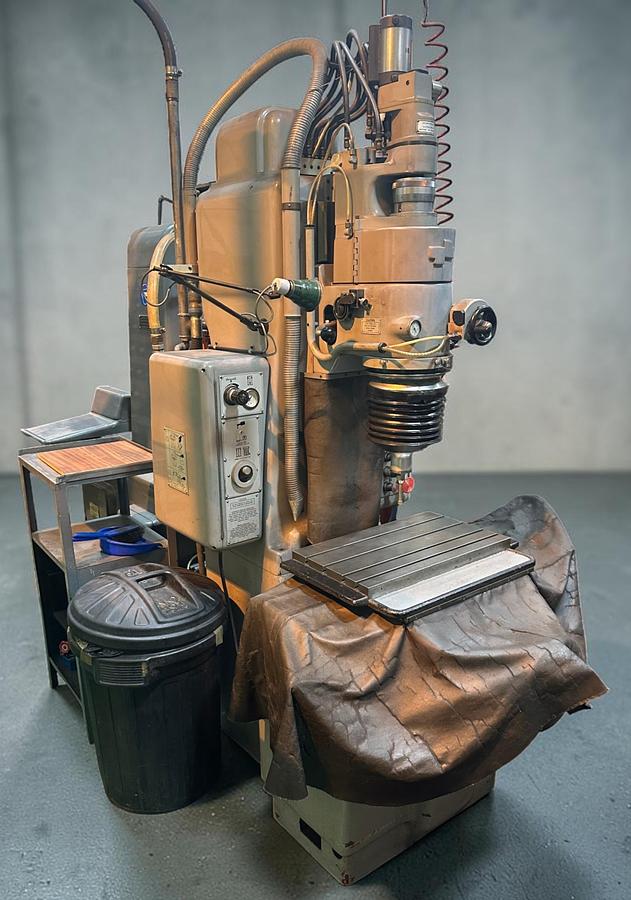

Moore 2C Jig Grinder

MOORE 2C JIG GRINDER

Table Dimensions (L x W): 19" x 10"

Longitudinal Table Travel, (X-Axis) 16.5"

Cross Table Travel, (Y-Axis) 10.5"

Spindle Slide Travel. 3.625"

Maximum Distance, Collet To Table 16"

Minimum Distance, Collet To Table. 0"

Distance, Spindle To Column

Column Ways: 10"

Column Below Ways 12.5"

(4) Spindle Speeds, Range 90 to 240 RPM

Grinding Wheel Speeds, Inf. Var. 5000 to 40000 RPM

Vertical Feed Rate, Inf. Var. 2 to 120 SPM

Grinding Capacity, Range 3/16" to 5"

Floor Space 4' x 4'11"

Overall Height 8'4"

Weight Approximately. 3150 LBS.
