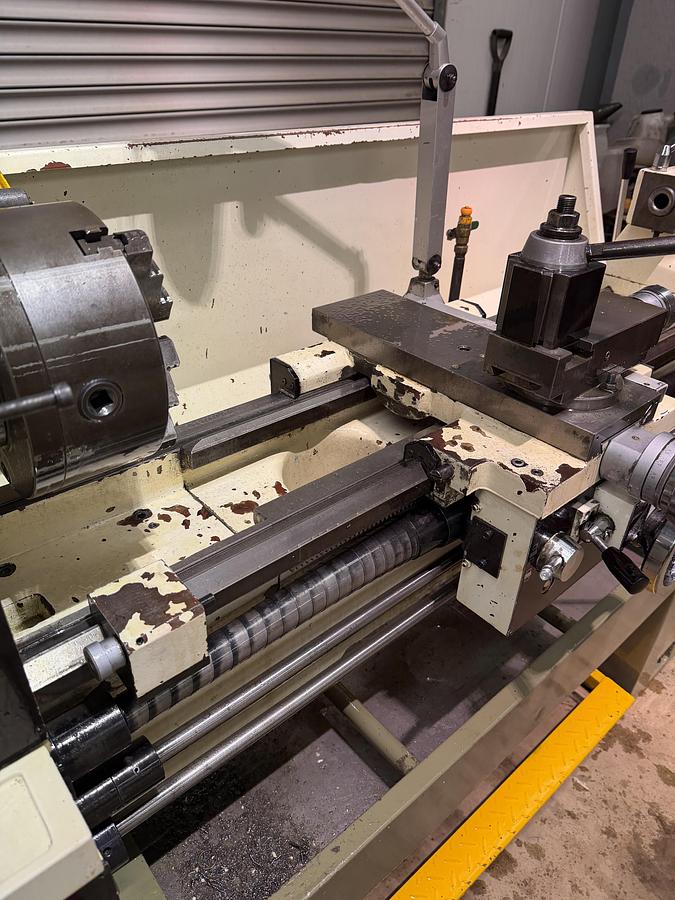

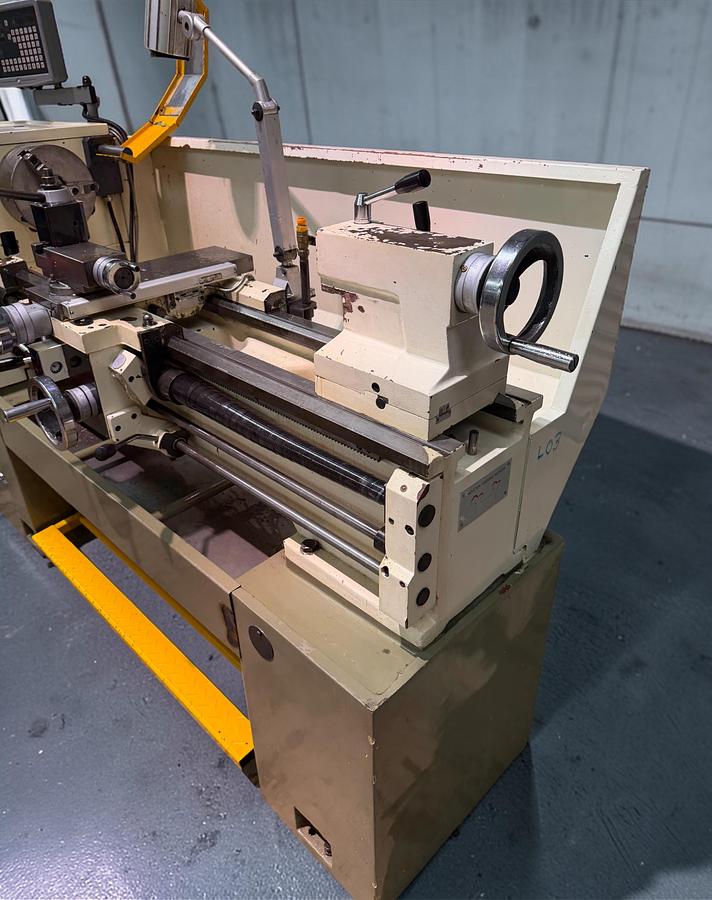

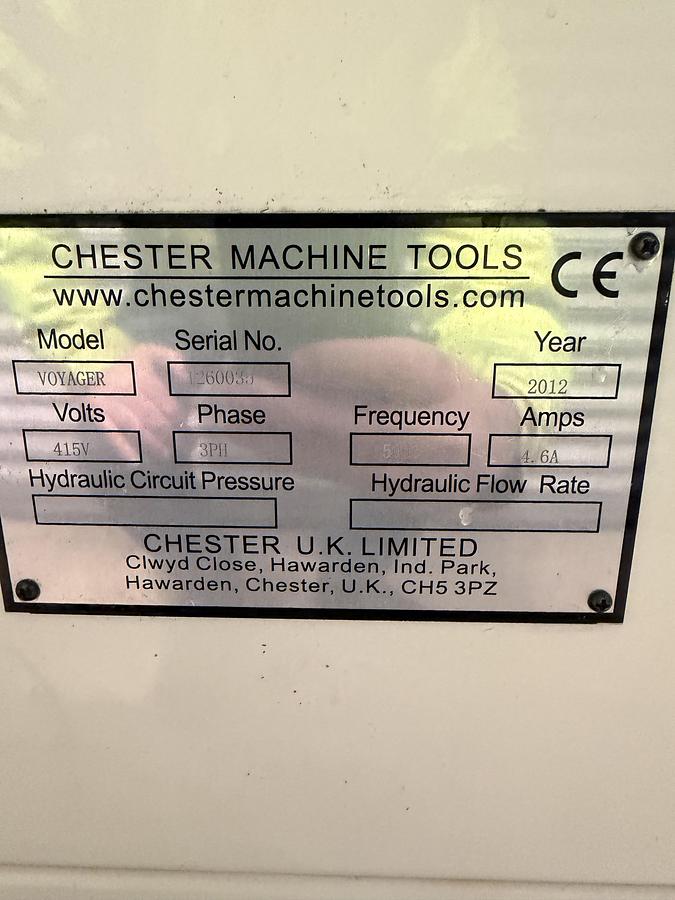

Chester Voyager Gap Bed Lathe

Chester Voyager Gap Bed Lathe

Centre Height 178mm

Swing over Bed 356mm

Distance Between Centres1000mm

Swing over Cross Slide 210mm

Swing in Gap 508mm

Gap Length in Front of Face Plate 200mm

Cross Slide Travel 180mm

Top Slide Travel 90mm

Bed Width 260mm

Weight of Work Piece in Chuck100kg

Weight of Work Piece between Centres 200kg

Headstock Spindle Nose D1-4

Spindle Bore 40mm

Spindle Taper MT5

Number of Spindle Speed Ranges12

Range of Spindle Speeds 40-1800rpm

Tool Section 16 x 16mm

Tailstock Quill Diameter 45mm

Quill Travel 120mm

Quill Internal Taper MT3

Feeds Range and Gearbox Longitudinal Feeds 0.03-0.688mm/rev

Cross Feeds 0.015-0.220mm/rev

Metric Threads 0.45-7.5mm (22steps)

Imperial Threads 4-56tpi (28 teps),

4-112tpi (40steps) Leadscrew Pitch 4mm

MotorsMain Motor2.2kW (3hp)

Coolant Pump Motor 0.04kW (0.05hp)

Weight And Dimensions Machine Dimensions1900 x 710 x 1170mm

Net Weight 1190kg

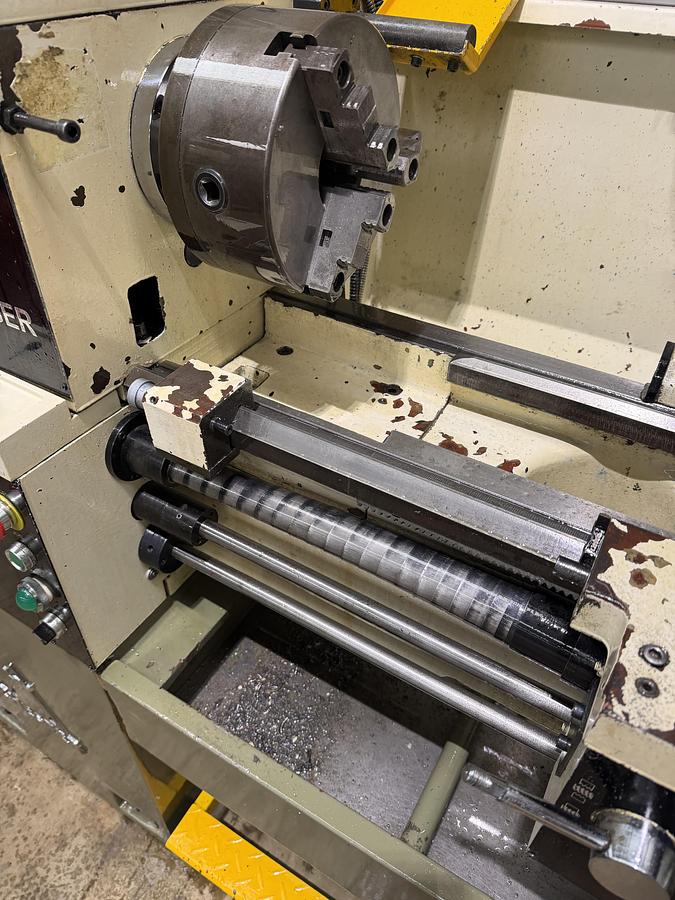

• 3 Jaw Chuck 200mm

• 4 Jaw Chuck 200mm

• Digital Read Out

• One Piece Cast Iron Base

• LED Machine Lamp

• Chuck Guard

• Toolpost Guard

• Leadscrew Guard

• Fixed Steady

• Travelling Steady

• Full Length Rear Splash Guard

• Coolant System

• Foot Brake

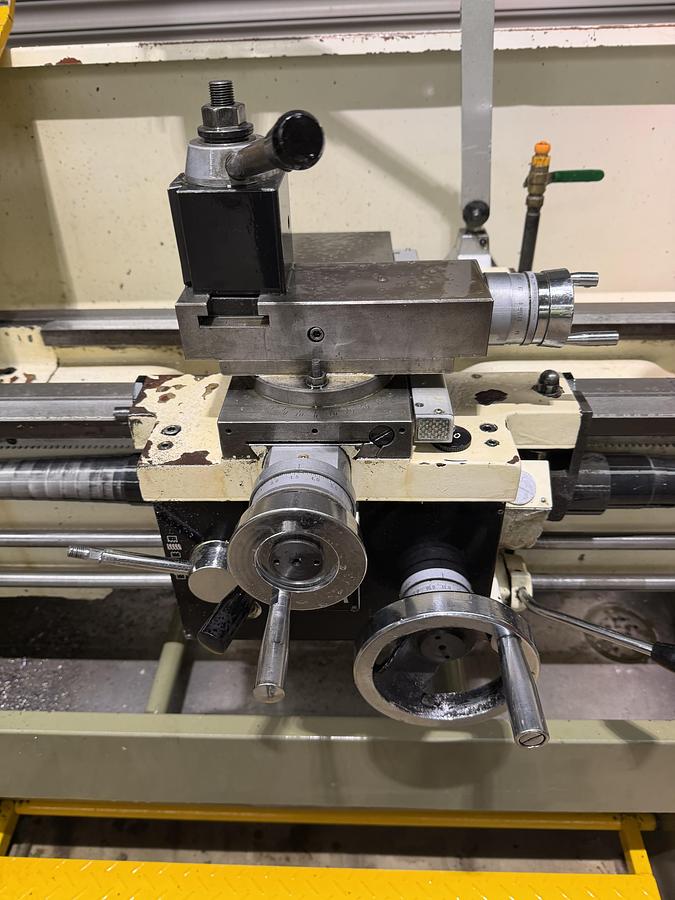

• Quick Change Tool Post with Tool Holders

• Thread Chasing Dial

• Single Position Micrometer Bed Stop

• Reducing Sleeve

• Steel Centre

• Tool Box

• Operation Manual
