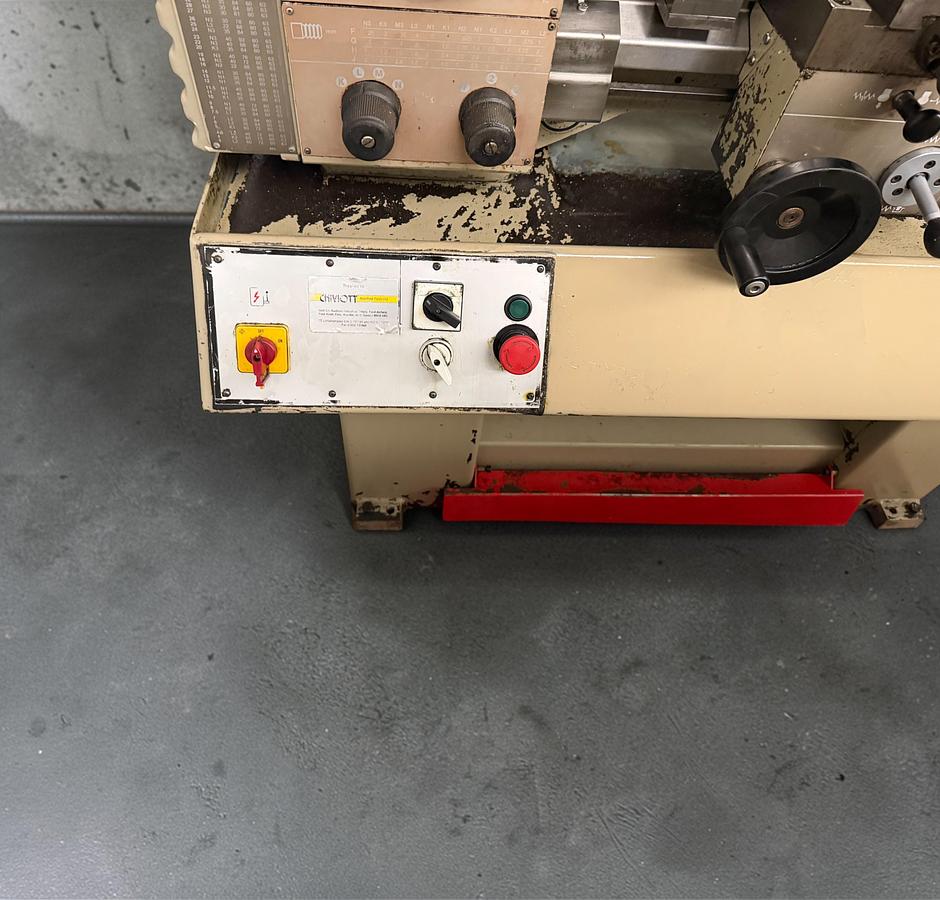

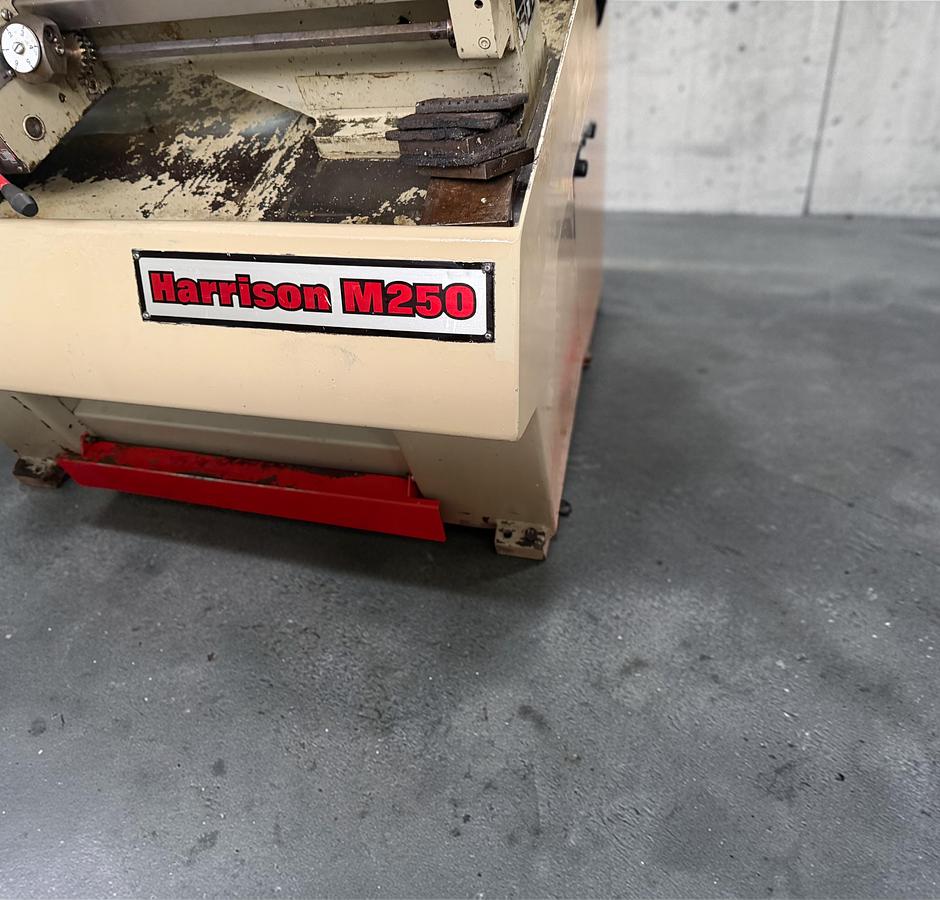

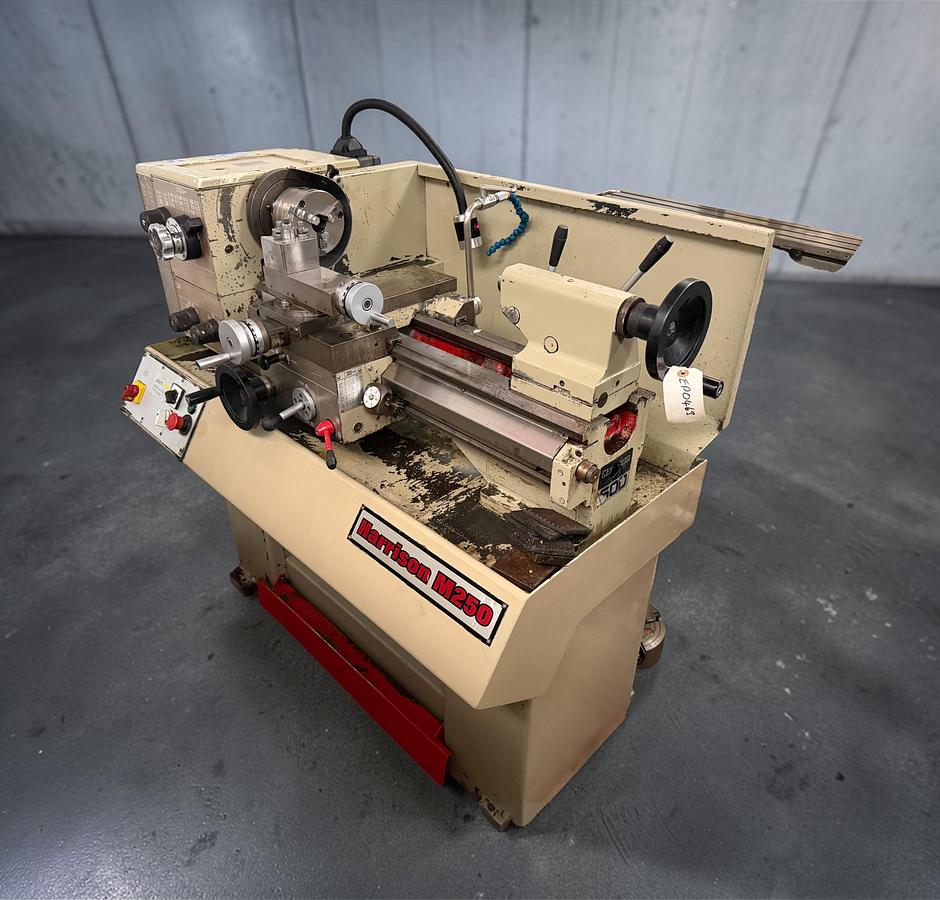

Harrison M250 20" Straight Bed Lathe

Harrison M250 Straight Bed Centre Lathe (Ex College Machine)

Capacity 20" (750mm) Between Centres

11" (280mm) Swing Over Bed

7" (178mm) Swing over cross slide

3MT Tail Stock

Spindle Bore1 3/8" (35mm)

Spindle NoseD1-3” Camlock

Equipment 3 Jaw Chuck & 4 Jaw Chuck

Quick Change Tool Post (holds two tools)

Coolant

Splash Back

Safety Lead Screw Covers

Chuck Guard

Speeds9: 80 to 3000rpm (80, 180, 240, 360, 520, 640, 1100, 1500, 3000 rpm)

Main Motor1.3 kW (1.8hp)

Power Three Phase Electric's 2.9 amps

Dimensions1605 x 735 mm weighs approx 500 Kg
