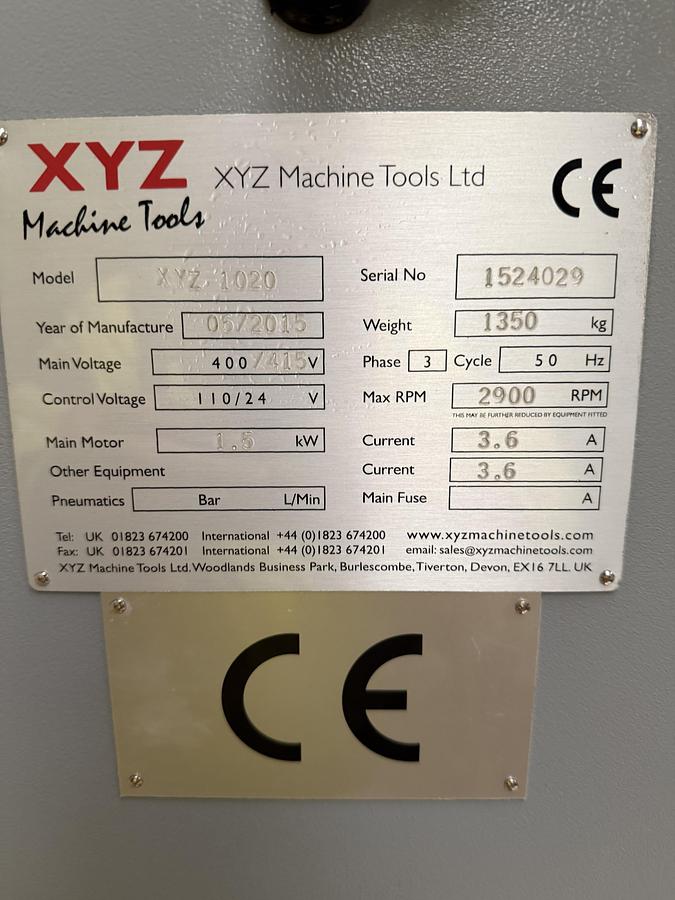

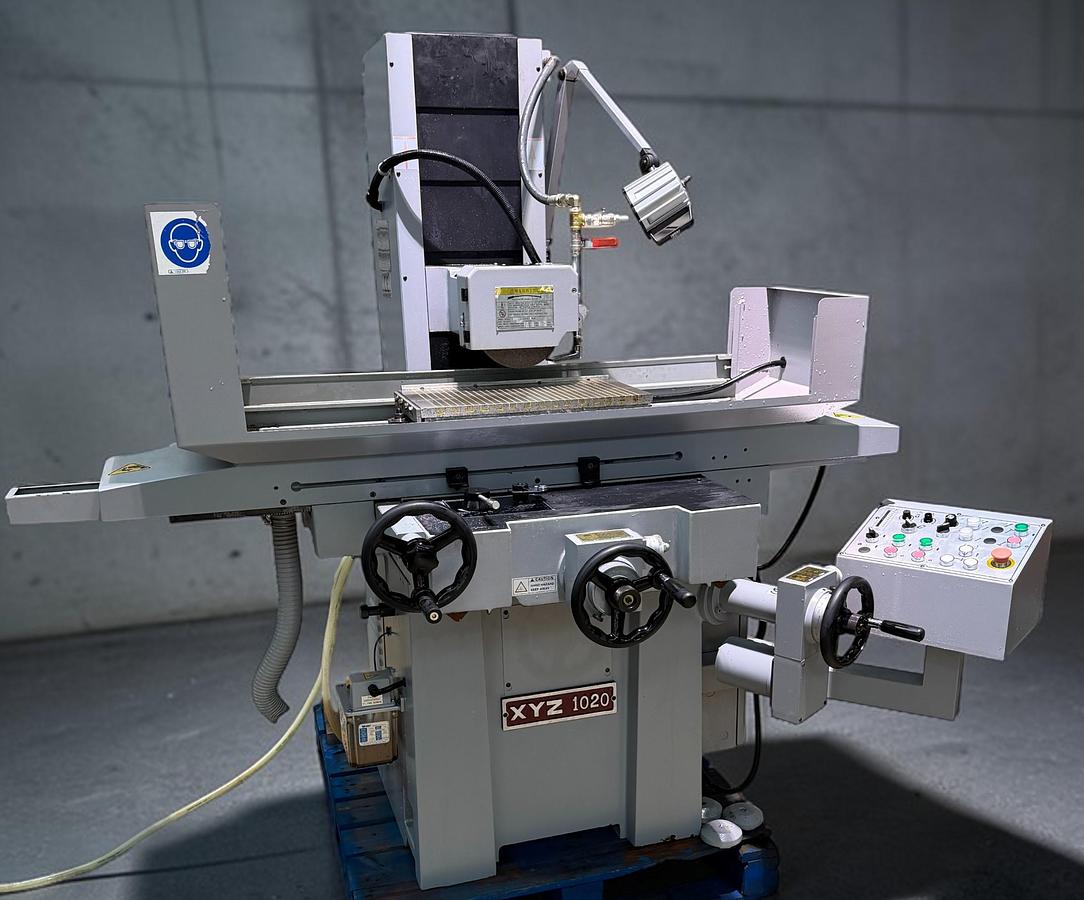

2015 XYZ 1020 Surface Grinder

XYZ 1020 Surface Grinding Machine

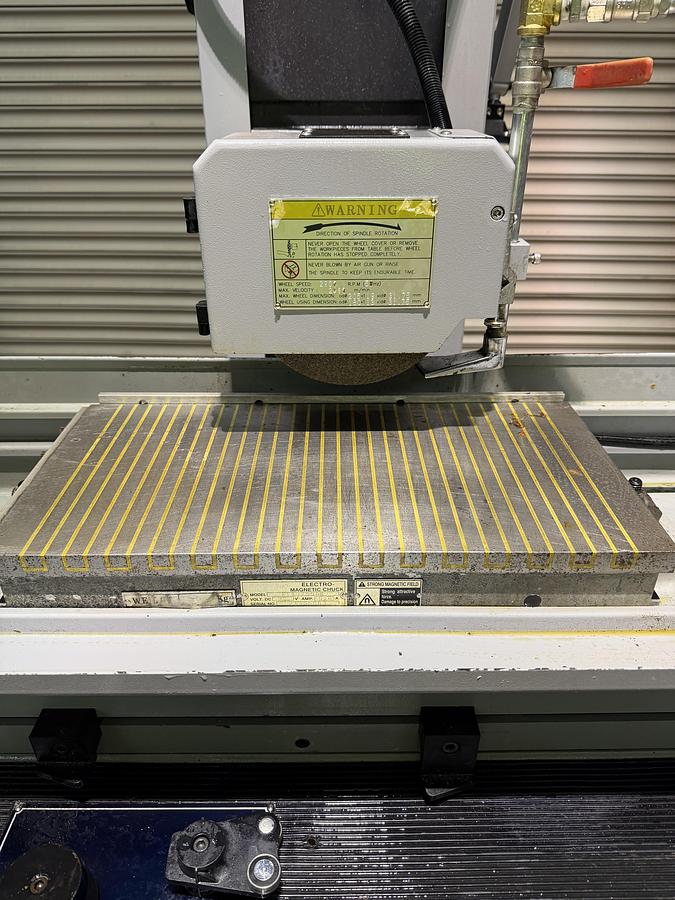

Mag’ Chuck 250 x 500mm

Spindle Speeds 3000rpm

Spindle Motor 2Hp

Standard Grinding Wheel Dia. 180mm

Standard Wheel Bore 31.75mm

Max. Longitudinal Grinding Travel- 500mm

Max. Cross Grinding Travel - 250mm

Max. Distance from Table Surface to Spindle Centre - 500mm

Max. Longitudinal Travel – 558mm

Longitudinal Travel Speed Range 5-25m/min

Cross Travel Increments 0.15 – 15mm

Cross Feed per Handwheel Revolution 4mm

Cross Feed per Handwheel Graduation – 0.02mm

Down Feed Per Handwheel Revolution 2mm

Down Feed Per Handwheel Graduation 0.01mm

Coolant

Dust Extractor

Work Light
