Newall 1520 Jig Borer

Newall 1520 Jig Borer

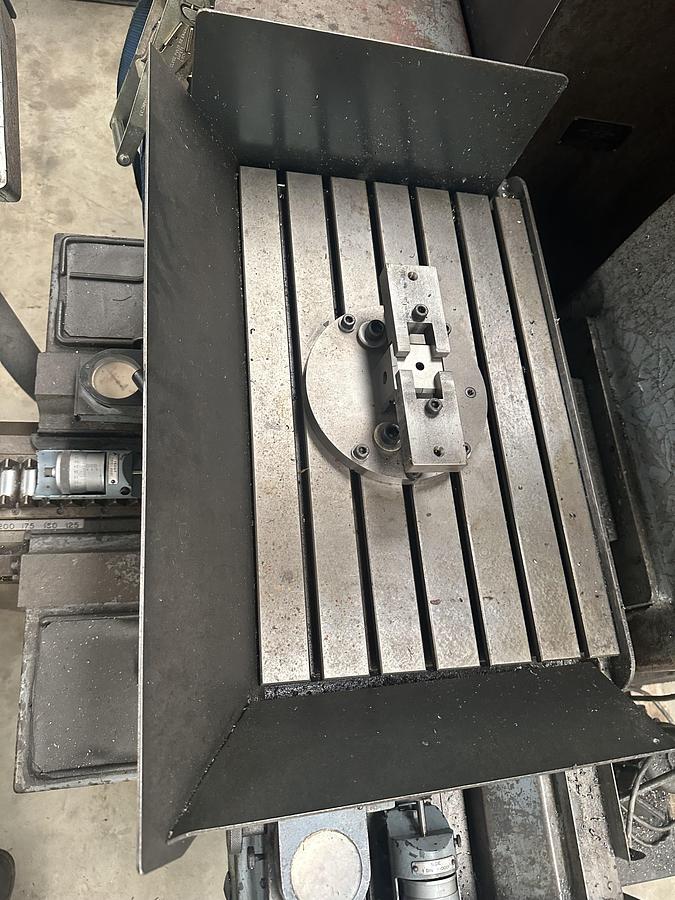

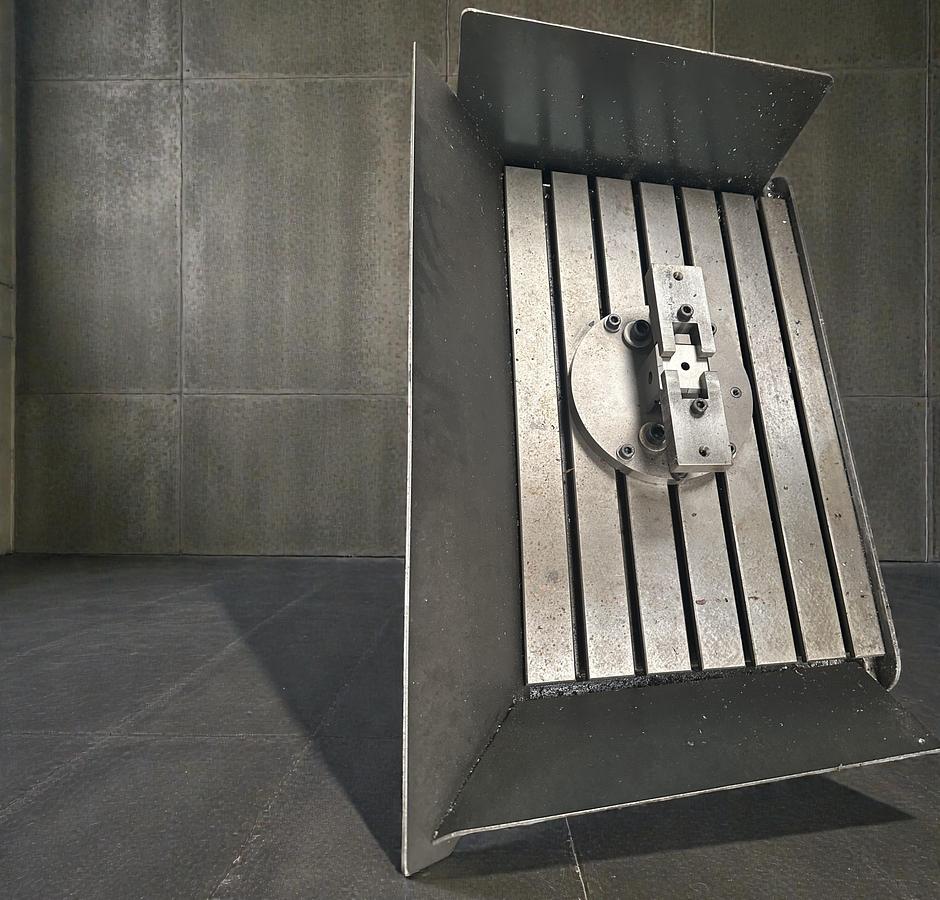

Table Dimensions 15" x 21"

Longitudinal Traverse of Table 15.6"

Cross Traverse of Table 10.6"

Vertical Feed Motion of Quill 5"

Vertical Adjustment of Quill Head on Column 12"

Maximum Distance Spindle Nose to Table 20"

Minimum Distance Spindle Nose to Table 3"

Distance from Spindle Centre to Column Ways 11 5/8"

Distance from Spindle Centre to Column Throat 14"

Table Settings 0.00005"

Spindle Speeds (12) 67 - 3000 RPM

Height of Table Surface above Ground 352

Overall Height of Machine 99 1/4"

Floor Space Required 68" x 58"

Weight of Machine 1800Kg
