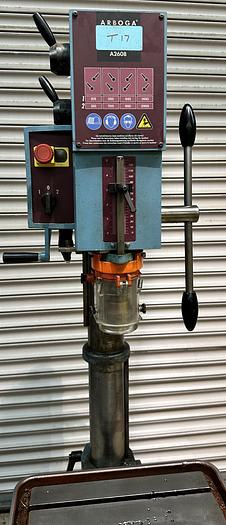

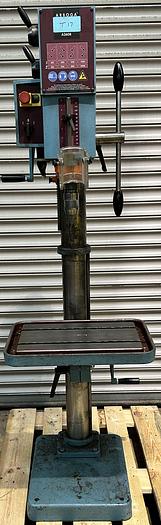

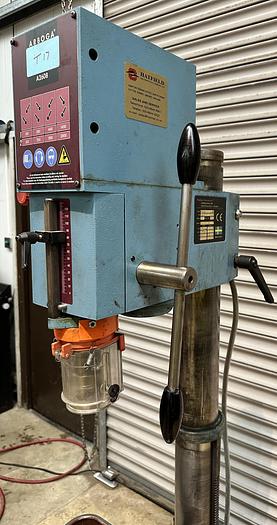

2002 Arboga A2608 Pillar Drill

Description

Both the ARBOGA A2608 pedestal drills and the power-feed version A2608M are gearbox driven for increase drilling torque. Helical and steel gears ensure highest operational efficiency for a more powerful drive mechanism and smooth operation. On the Arboga A2608M model, once the set drill depth is reached, the spindle will automatically return to the starting point. The feed gearbox is fitted with automatic overload protection which intervenes if the drilling pressure is too high.

Specification

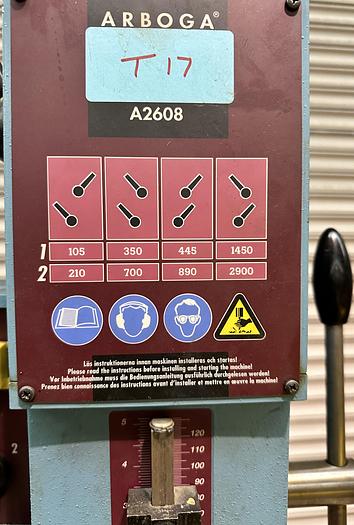

Arboga A2608 gear head drill Drilling capacity25mm Quill movement135mm Tapping capacity (steel, cast iron)M16 / M20Morse taper MK / MT3Motor power (50Hz)0,65kW / 0,9kWSpindle speed (50Hz)105-210-350-445-700-890-1450-2900Feed speed (mm/inch)0,10/0,004-0,15/0,0006-0,30/0,012Size of table500 x 400mmElectrics400v / 3 ph / 50HzNet weight - A2608 / A2608M180 / 200Kg

Arboga A2608 Gear Head Drills

Features

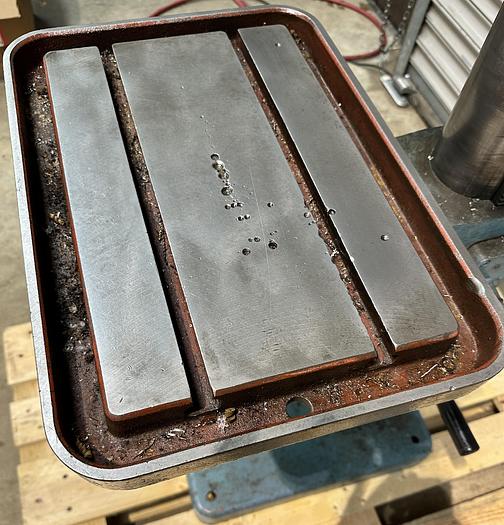

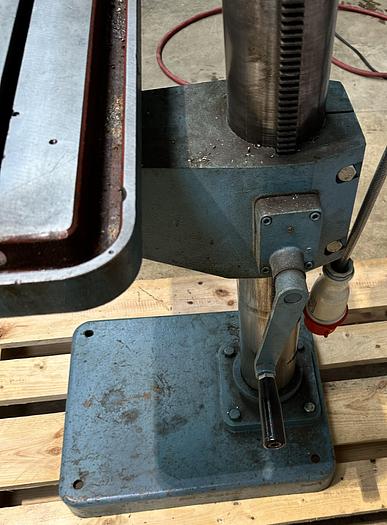

500 x 400mm table and electrically interlocked chuck guard rise/fall on both head and table. Table head also revolves through 360 degrees about the column
